Coaxial Cable Stripping Machine,NFJC-4806

NFJC - 4806 designed for coaxial cable outer jacket stripping operation, equipped with advanced LCD touch screen, intuitive and convenient operation. The equipment adopts ball screw drive, stable operation and high precision. Stripping length can be flexibly adjusted within the range of 0.1mm - 60mm, wire diameter range of 0.8mm - 10mm, to meet the needs of a variety of cable specifications. The tool is made of imported tungsten steel with high hardness and wear resistance, which effectively protects the quality of wire stripping and the service life of the tool. The working mode has both single-action and continuous mode, which can be switched flexibly according to the actual operation scenario. Applicable to a wide range of wires, including flexible/semi-flexible coaxial cables, semi-steel coaxial cables, corrugated coaxial cables, threaded coaxial cables, three-axis cables, as well as charging pile cables, BV cables, sheathed cables, shielded cables, feeder cables, and other types of cables.

Coaxial Cable Stripping Machine,NFJC-4806

Product Description

NFJC – 4806 designed for coaxial cable outer jacket stripping operation, equipped with advanced LCD touch screen, intuitive and convenient operation. The equipment adopts ball screw drive, stable operation and high precision. Stripping length can be flexibly adjusted within the range of 0.1mm – 60mm, wire diameter range of 0.8mm – 10mm, to meet the needs of a variety of cable specifications. The tool is made of imported tungsten steel with high hardness and wear resistance, which effectively protects the quality of wire stripping and the service life of the tool. The working mode has both single-action and continuous mode, which can be switched flexibly according to the actual operation scenario. Applicable to a wide range of wires, including flexible/semi-flexible coaxial cables, semi-steel coaxial cables, corrugated coaxial cables, threaded coaxial cables, three-axis cables, as well as charging pile cables, BV cables, sheathed cables, shielded cables, feeder cables, and other types of cables.

Key Features:

  • Convenient operation interface: Equipped with LCD touch screen, the operation is intuitive, and you can easily set the parameters and control the equipment.
  • Accurate drive system: Adopting ball screw drive to ensure stable operation and high stripping precision, which can precisely control the stripping length.
  • Flexible Stripping Length: Stripping length ranges from 0.1 – 60mm, which can be flexibly adjusted according to different needs, applicable to a variety of stripping scenarios.
  • Wide range of cablediameter compatibility: wire diameter range of 0.8 – 10mm, to meet the various types of thick and thin cable stripping operations.
  • High-quality tool material: the tool is made of imported tungsten steel, with high hardness and wear resistance, which ensures the quality of wire stripping and the service life of the tool.
  • Diversified working modes: the working mode has single-action and continuous mode, which can be freely switched according to the actual working condition to improve the working efficiency.
  • Wide range of wire application:the applicable wires are extremely wide, covering flexible/semi-flexible coaxial cables, semi-steel coaxial cables, corrugated coaxial cables, threaded coaxial cables, three-axis cables, as well as charging pile cables, BV wires, sheathed wires, shielded wires, feeder wires, and so on.

Specifications:

Model NFJC-4806
Display Method LCD Touch Screen
Applicable wires Coaxial Cable
Power supply AC 220V 50Hz
Cutter material Imported tungsten steel
Driving mode Ball screw drive
Stripping Length 0.1mm-60.00mm
Stripping Length Setting Unit 0.01mm
Cutting wire diameter range Ø0.8mm-Ø10.00mm
Cutting depth setting unit 0.01mm
Working efficiency 500-700pcs/hour (depending on wire type, number of layers, stripping)
Number of peeling sections 9 layers
Working mode Single action (manual, foot pedal) or continuous action (automatic)
Applicable wire type Flexible/semi-flexible coaxial cable, semi-steel coaxial cable, corrugated coaxial cable, threaded coaxial cable, Triaxial Cable, Charging Pile Cable, BV Cable, Sheathed Cable, Shielded Cable, Feeder Cable, etc.
Overall Dimension L600×W210×H300mm
Weight 25.2kg



Standard Configurations:

No. Description/Model Qty
1 Coaxial Cable Stripping Machine, NFJC-4806 1set
2 220V AC Power Cord 1pc
3 Air Hose 1pc
4 Foot switch 1pc

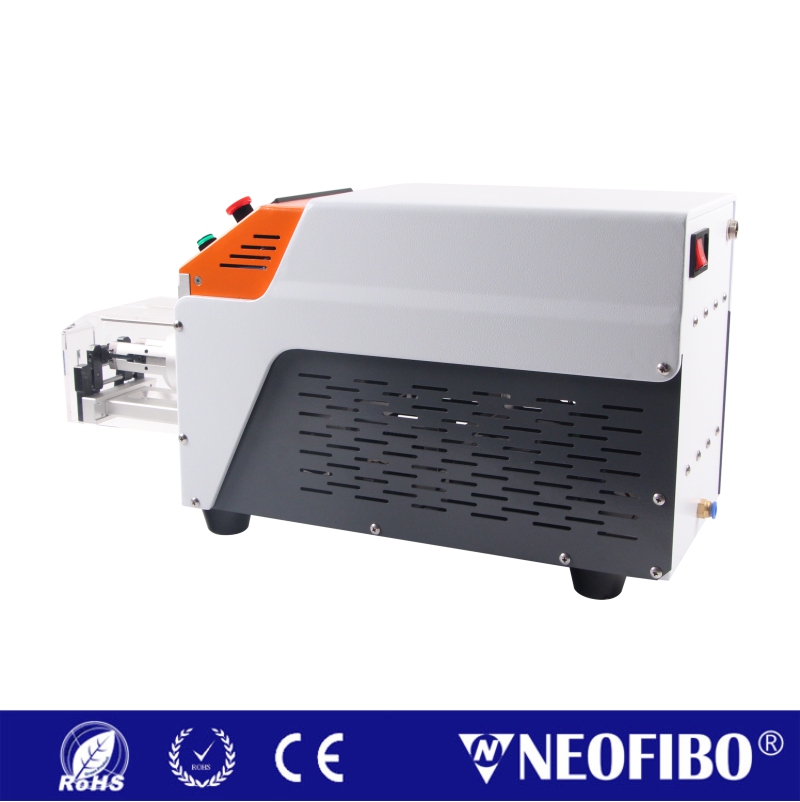

  • Coaxial Cable Stripping Machine,NFJC-4806

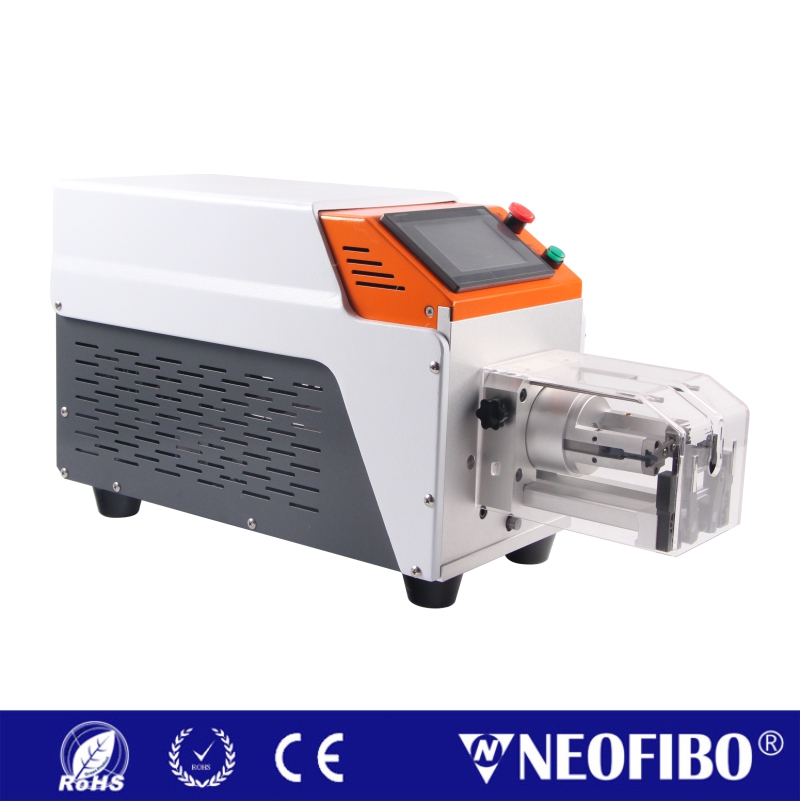

  • Coaxial Cable Stripping Machine,NFJC-4806

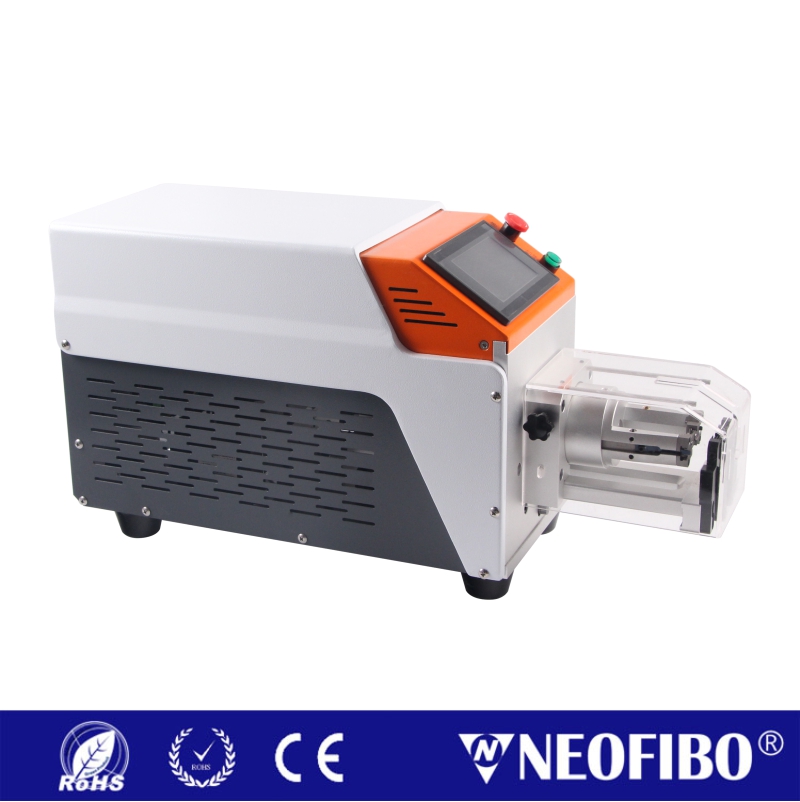

  • Coaxial Cable Stripping Machine,NFJC-4806
