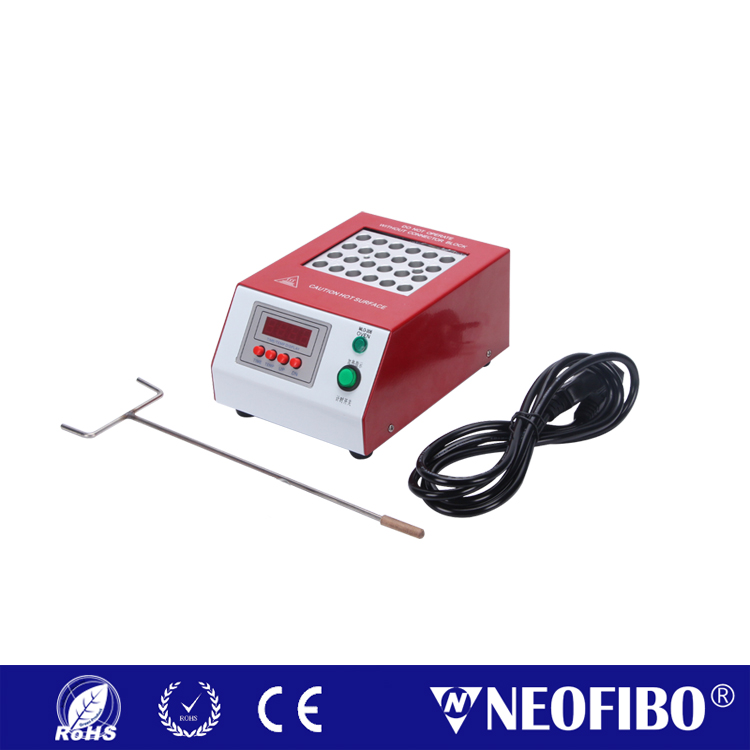

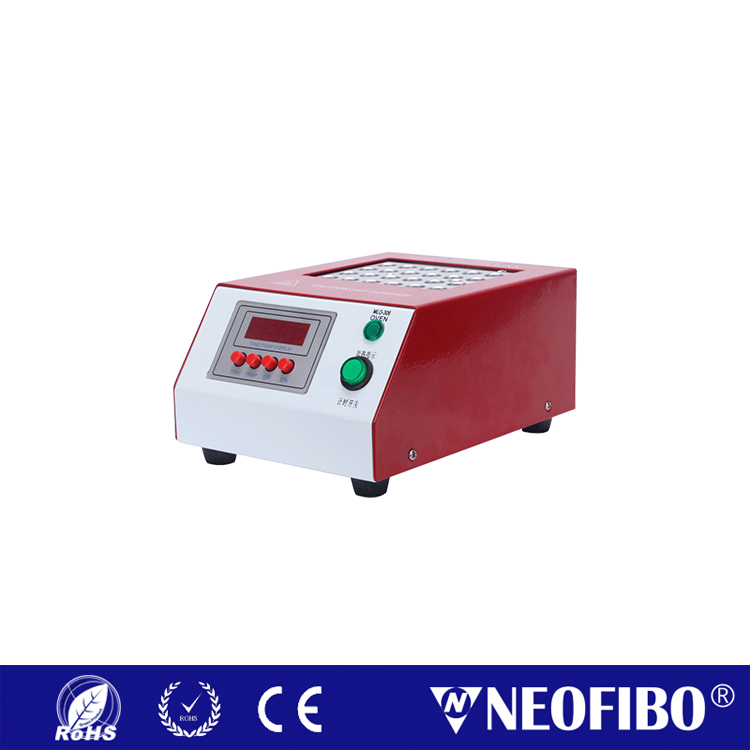

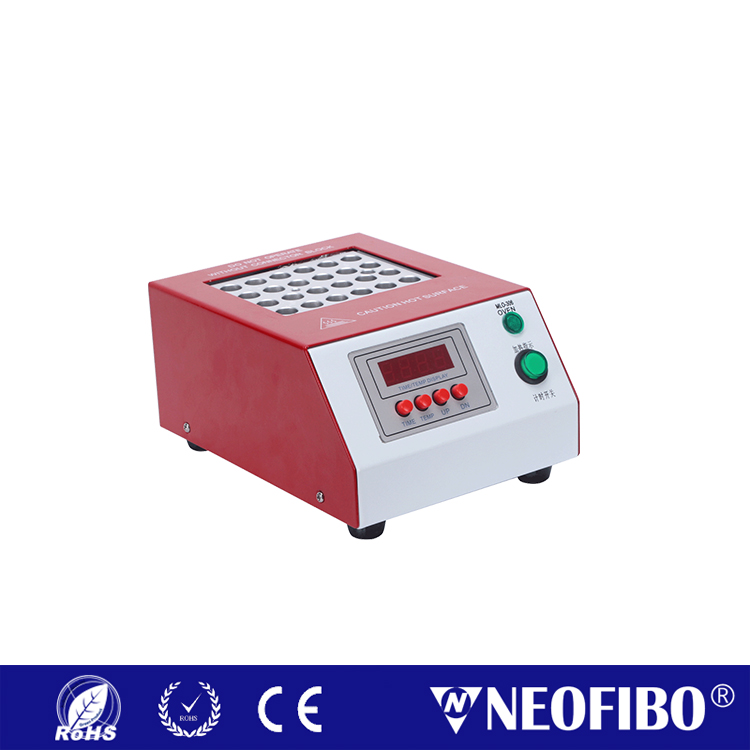

Digital Fiber Optic Curing Oven OFO-24D
Digital Fiber Optic Curing Oven OFO-24D
Product Desperation：
The multifunctional curing oven using industrial control chip, PID algorithm control temperature, can set temperature and time, the digital display temperature, a buzzer to alert. Provide good human-machine interface, effectively improve the curing speed.
Parameter：
- Voltage: AC220V/50Hz，AC110V/60Hz
- Power: 130W
- Control range:0~135℃
- Control precise：±1℃
- Timer range：1~99min 99seconds
- Machine dimension：L 185×W 135×H 95mm
- Net weight：3KG
- Package dimension：L 300×W 245×H 160mm

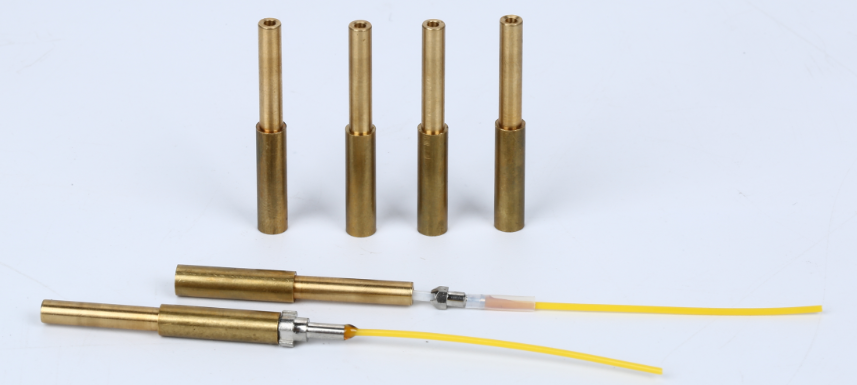

Fiber Optic Curing Oven Customize Protective Sleeve:
Operation instruction：
1）Setting Time
Hold down the TIME key 2 seconds, can enter the time setting pattern, the light will shine, press UP (+) key can increase the time during operation, press DN (-) key can reduce time during operation. Click the TIME key will exit temperature setting pattern. In the time setting, if during 10 seconds, don’t press key, will automatic exit time setting. Note: after clock started, can’t set time and temperature anymore.
2）Setting temperature
Hold down the TEMP key 2 seconds, enter into temperature setting pattern, the light will shine, press UP (+) key can increase the temperature during operation, press DN (-) key can reduce temperature during operation. Click on the TIME key to exit temperature setting. In the time setting, if during 10 seconds, don’t press key, will automatic exit time setting. Note: after clock started, can’t set time and temperature anymore.
3）Timer
When press the right green button, the timer start to count down, when the time duration reduced to 0, the buzzer will alarm every 2 seconds with B sound. Click the green button again to stop the alarm.
If you want to see the temperature, please press the TIME key, the control panel will show the temperature.
4）View timer
Press the TIME key, the control panel will show the setting timer.
5) View temperature
Press the TEMP key, the control panel will show the actual temperature.
4）Alert
When time duration reduced to 0, the buzzer will alarm every 2 seconds with B sound. Can click any red button cancelled the alert.
