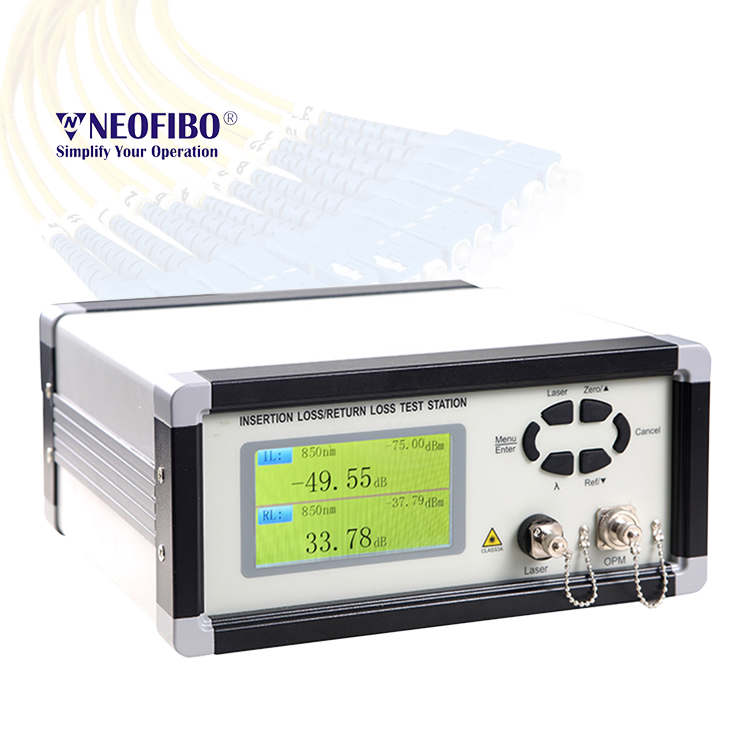

Fiber optics Single Channel Winding Insertion ＆ Return Loss Test Station ILRL-6001
Fiber optics Single Channel Winding Insertion ＆ Return Loss Test Station ILRL-6001
Model: ILRL-6001
Place of origin: Guangdong China
Description: This I/R loss tester is depended on the rich experience in the production and test of the passive components and test instrument, fully absorbing the advantages of the international instrument, Our designs and develops Return Loss/ Insertion Loss Test Station to meet the growing customers’ requirements from the domestic and international markets.Return Loss/Insertion Loss Test Stations are widely used to test the insertion loss and return loss of the fiber cables, fiber optical active components and fiber optical passive components.It is essential and ideal tool for the test, research, development, construction and maintenance of the manufacturers, research institutions and network service providers and carriers.
Feature:
1. High measurement accuracy
It has the stable output power, fast test and wide test range by adopting the built-in laser isolator, advanced microelectronics technology, optical test instrument and software.
2. Synchronously auto-setting wavelength
In return loss test mode, the unit will automatically and synchronously set the same wavelength for the light source and power meter. In power meter mode, the wavelength of power meter could be set separately.
3. Multiple working modes
This unit integrates three working modes in one, they are return loss test, optical power test and insertion loss test.
4. Easy Operation
Insertion loss /return loss will test synchronously without switching the button. The return loss value and insertion loss value are displayed separately on the two LCD screen of the unit. By the “zero” and “ref” keys, this unit will store the corresponding calibration value and keep it valid when the unit is turned on again next time and even the power supply is suddenly cut off.
5. Human Engineering Design
By adopting the high-quality mental material, this refrains the unit from the electrical interference under the production
condition. The button is durable in use and smooth and pleasant to the touch.
6. Universal optical connector, easy cleaning
The connectors of light source and power meter are all movable and easily took out to clean the detector of power meter or inside APC adaptor of the light source, or replaced with another type of connector.(Note:While detaching,revolving optical connector adapters of OPM&OLS only and then pull out connecctor adapters would be okay)
7.USB Port
The test results could be sent to the computer or printer through the USB port. On-line displaying current measurements and measurement results can be saved by foot switch.
Specification:
