Handheld Wireless Fiber Optic Inspection Scope，FV-3000P
Handheld Wireless Fiber Optic Inspection Scope，FV-3000P
Product Description:

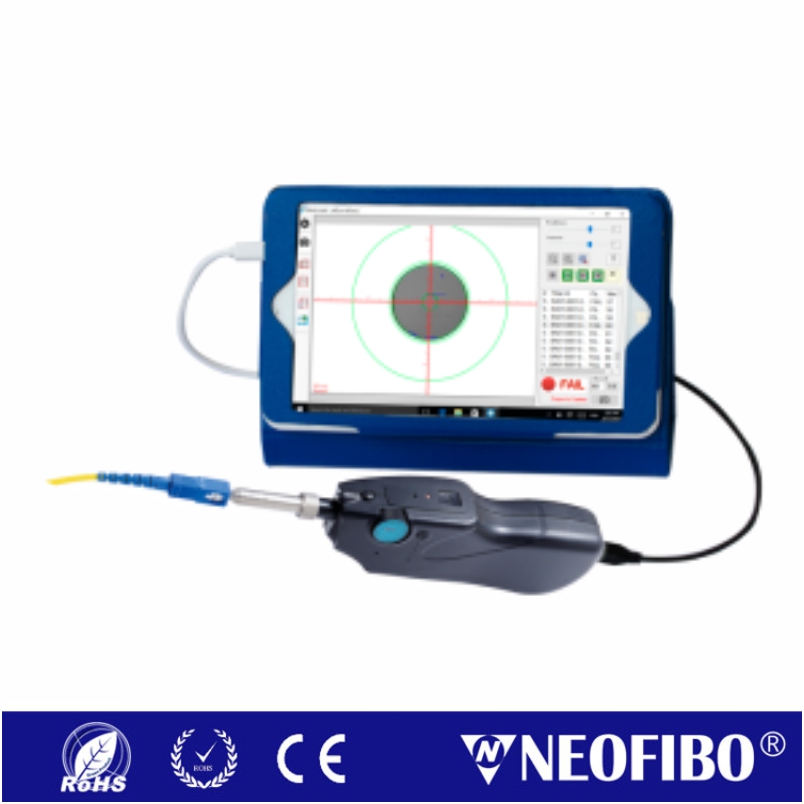

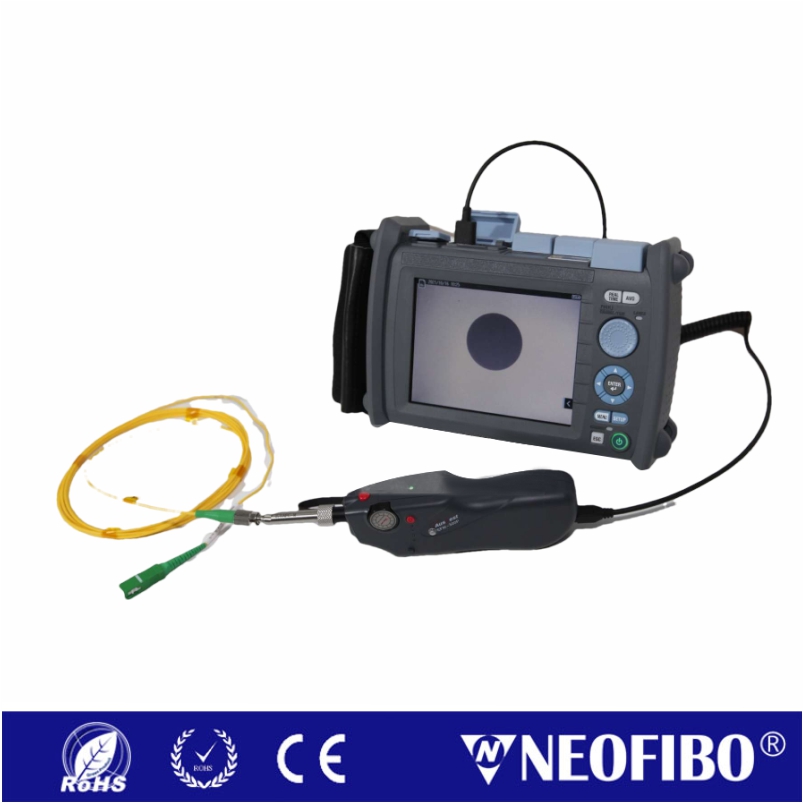

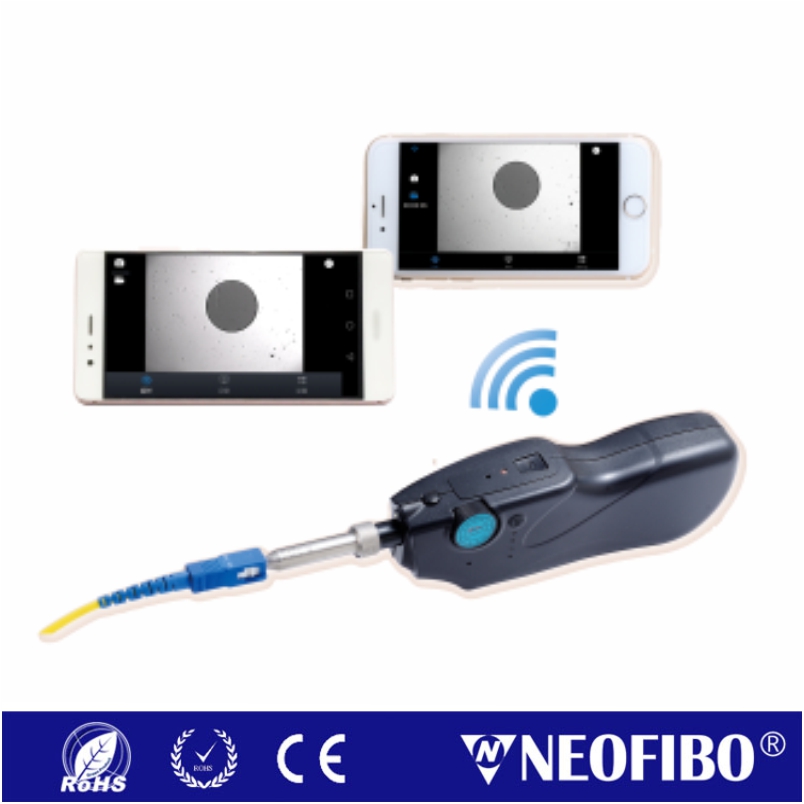

FV-3000P Fiber end-face inspection scope is a portable handheld intelligent end-face detection equipment, can be used to detect a variety of fiber optic connector end-face, wide detection range, fast speed, zoom clear. This device is equipped with 4 types of detection adapters, a wide range of applications; mainly through the wifi signal to connect the terminal digital smart devices, such as mobile phones / ipad, etc. for detection, to USB cable auxiliary connection to the computer / OTDR and other equipment. Inspection operators can carry out wireless or wired end-face inspections at any time with the smart devices they carry with them. The application of this device also has the function to further realize the automatic analysis and inspection of fiber end-face, report storage, data transmission and so on.
The end-face detector is lightweight and portable, with a usage time of up to 5hr+, which fully guarantees a day’s worth of inspections, and the handheld detector is scientifically focused and designed with an anti-slip grip for more comfortable use.
Key Feature:
- Unidirectional focusing, automatic analysis to determine the end-face;
- Support Wifi and USB to transfer data;
- Image real-time high-definition imaging analysis, resolution better than 1μm;
- Image-capture capability for documentation；
- 400×, High definition, clear image；
- Ideal for all types of connectors test: APC, UPC, MTP and more；
- Support multi-terminal smart device connection, mobilephone / ipad / computer / OTDR；
- Support mainstream operating system Wins/Android/iOS/Linux；
- Continuous working time up to 5hr+, USB data connection for charging.
Specification：
| Product Name | Handheld Wireless Fiber Optic Inspection Scope |
| Model | FV-3000P |
| Magnification | 200X or 400X |
| Definition | <1μm |
| Light source | Blue LED |
| View of field | 480*375μm or 300*225μm |
| Focus wheel | Single-way |
| Focus speed | 1-5s |
| Alignment | >98% |
| Capture button | Available |
| Quick switch | Wi-Fi/USB |
| Connector | Micro USB |
| Connectivity | Wifi 802.11/USB 2.0 |
| Frequency band | 24GHz |
| OS compatibility | Android6 and above；iOS8.1 and above |
| Voltage | 5V |
| Power support | 3400mAh Lion |
| Working time | >5hrs |
| Recharge time | <5hrs |
| Weight/Dimension | 175g / 19x5x3cm |
Configuration List：
| Product | Description | Quantity |
| FV-3000P | To test the fiber end face on patch cords / connectors in patch panels, etc. | 1pcs |
| Standard Adapter | SC-PC-F/M, FC-PC-F/M, LC-PC-F/M | 1 pcs/type |
| USB cable | USB to Micro USB cable
For charging or data transfer |
1pcs |
| Soft case | For carrying the probe and accessories | 1pcs |
| Application | FiberEye2 on Android & IOS | |
| USB AC adapter(optional) | 5V 1A charger | 1pcs |
| USB adapter(optional) | USB-C to USB-A adapter, applicable for USB3.1 OTG smart devices | 1pcs |
| Arm strap(optional) | Outdoor arm strap holding Mobile Phone | 1pcs |
| Software(optional) | EFD end face data analysis software, free upgrade. | |
