Neofibo MT Ferrule Polishing Fixture, MT-UPC-24SK
MT Ferrule Polishing Fixture, MT-UPC-24SK
Product Description：

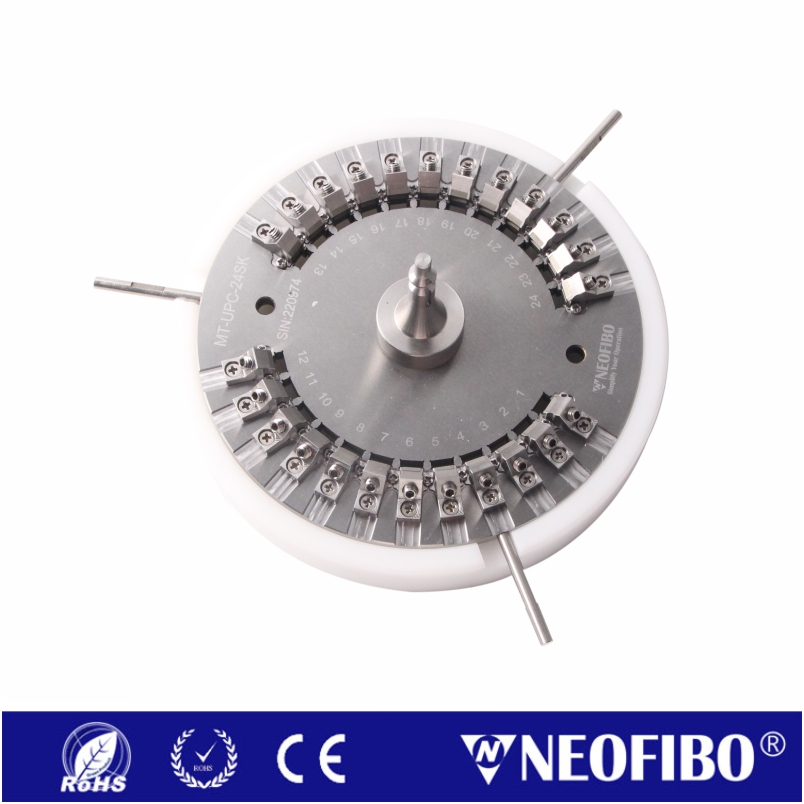

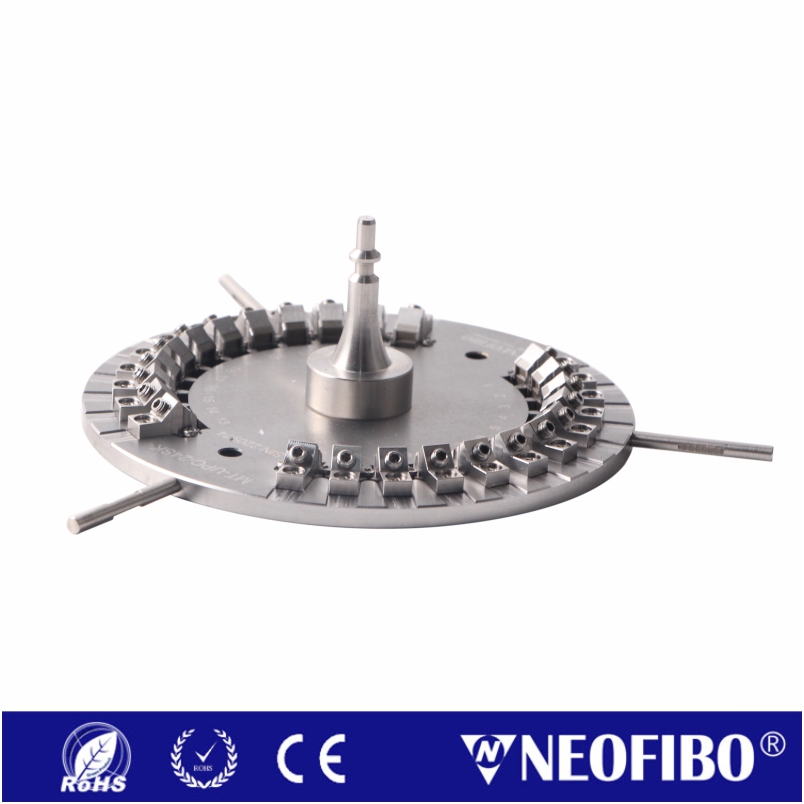

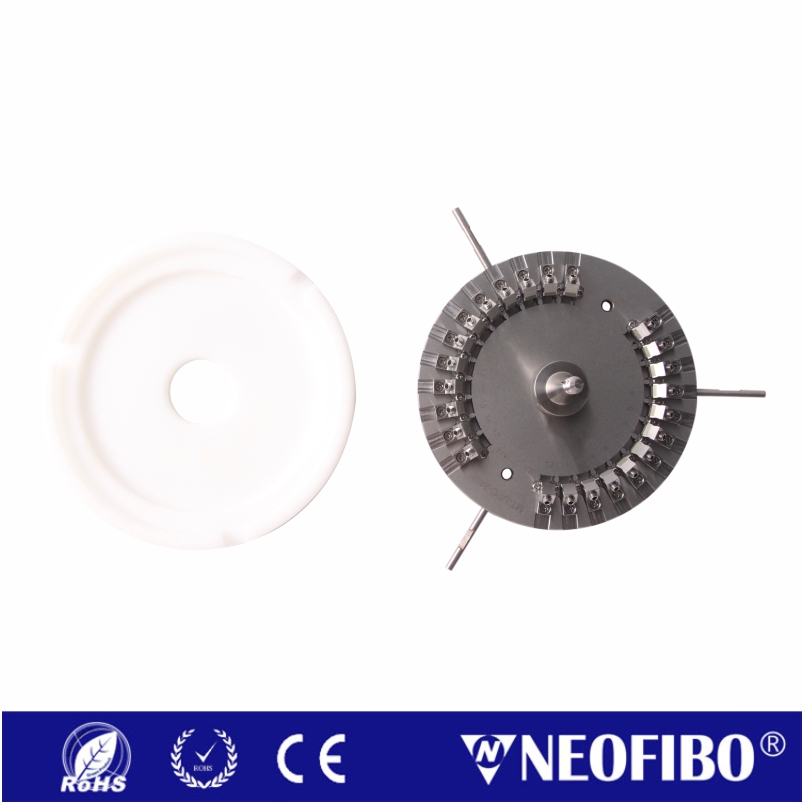

MT-UPC-24SK MT UPC ferrule polishing fixture is developed and designed by Shenzhen Neofibo Technology Limited, which is specially designed for grinding MT ferrules, and it is suitable for Fan Hong Kong APC-8000 grinding machine. The product adopts 45°skewed screw locking method, each ferrule is independently pressurized to ensure the effect of grinding surface, and can be customized for different diameters of the ferrule grinding jig.
Model: MT-UPC-24SK
Place of Origin: Shenzhen, China
Key Feature:
- This fixture is designed for MT ferrules grinding design, can grind PC, APC end face;
- According to the four corners of the pressurized fixture way, the new design to the fan port disk, good anti-interference way;
- Using a unique oblique 45 ° screw locking method, each insert independent pressurization;
- Can grind up to 24 inserts simultaneously at one time, good grinding effect
- Grinding fixture has the characteristics of high reliability and high consistency;
- Excellent endface grinding results after debugging of the grinding parameters;
- This grinding jig is suitable for APC-8000 fan port grinding machine.
Application：MT PC/APC ferrule
Specification：
| Model | MT-UPC-24SK |
| Disk Diameter | 127mm |
| Maximum number of cores | 24 positions |
| Grinding product category | MT PC/APC ferrule |
| X-axis angle control (degree) | ≤0.15 |
| Y-axis angle control (degree) | ≤0.15 |
| Applicable models | APC-8000 |
| Net weight | 0.8 kgs |
| Gross weight | 1.5 kgs |
| Packing size | 220*220*100mm |
