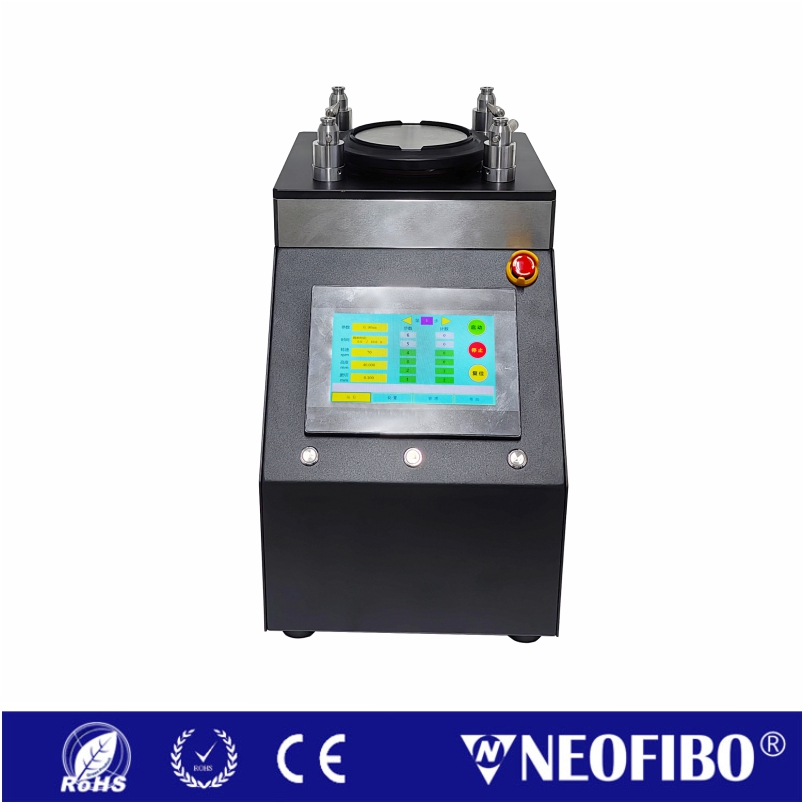

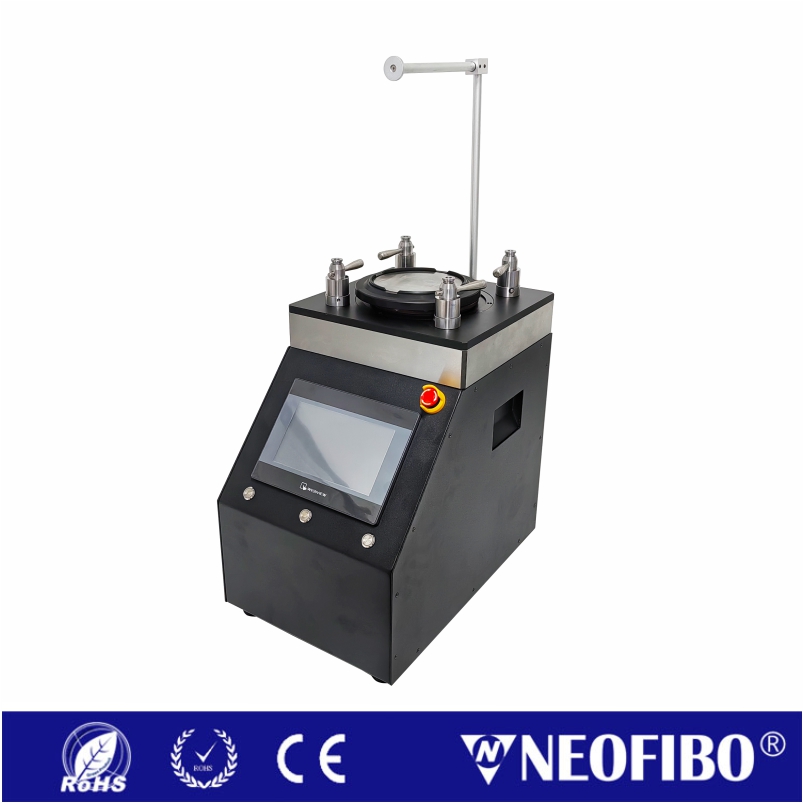

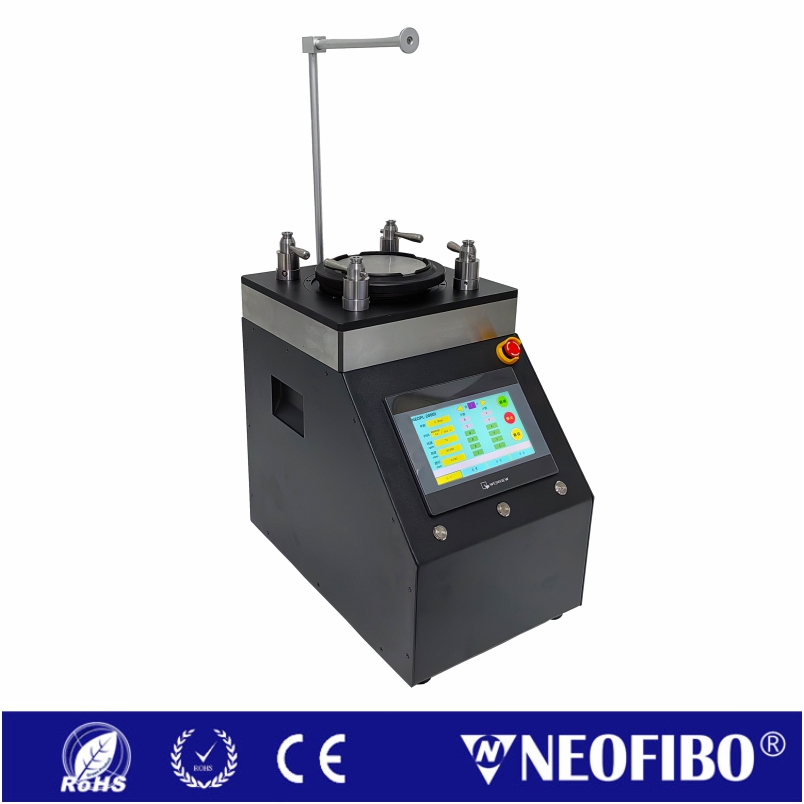

Precision Fiber Polishing Machine，NEOPL-2000i
Precision Fiber Polishing Machine，NEOPL-2000i
Product Desperation：
NEOPL-2000i Precision Fiber Polishing Machine is a new type of polisher based on the improvement and optimization of intelligent four-corner pressurized grinder, with built-in software and PLC control system, turntable with lift control system, and 6 inches larger can greatly improve the grinding efficiency. Humanized operation interface, grinding parameters can be customized, grinding quality is no longer overly dependent on the operator’s skills and experience. The biggest advantage of this grinder is that it can effectively guarantee the consistency of MT insert die-cutting length and grinding angle, and can grind 36-42 MT inserts at one time.
Key Feature：
> Built-in Auto-lift control system;
> The 6-inch rotation plate improves polishing efficiency by 50%, polishing 36~42 MT ferrules at once;
> Equipped with pressure sensing function to quantify polishing pressure;
> Lifting rotation plate control with precision 0.001mm, repeatability 0.001mm;
> Polishing height is counted by millimeter(0.005mm);
> Friendly interface and customizable polishing parameters;
> Provide strict polishing consistency;
> Effectively ensure the consistency of MT ferrule polishing height and angle.
Application: MT ferrule, precision component, optical mirror

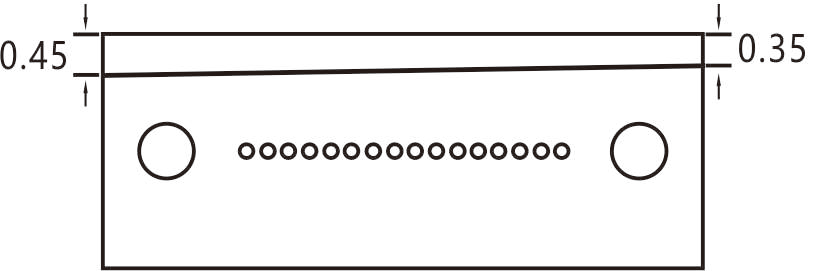

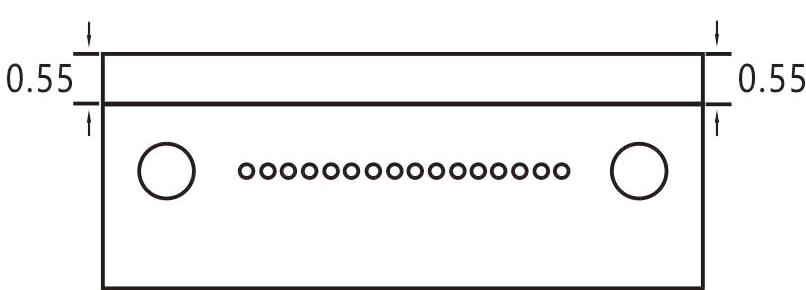

Ordinary Polishing Machine vs Neofibo New Polishing Machine：
| Machine | Ordinary Polishing Machine | Neofibo New Polishing Machine |
| MT APC
Ferrule End-face |
 |
 |
| X-axis angle error | ≤0.15° | ≤0.08° |
| Y-axis angle error | 8°±0.20° | 8°±0.10° |

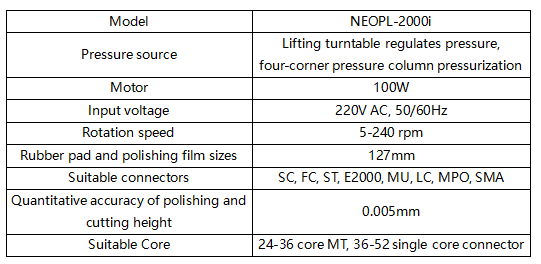

Specification：
| Model | NEOPL-2000i |
| Pressure source | Adjust the pressure of the lifting turntable or four corner pressure column |
| Motor | 100W |
| Voltage | 220V AC, 50/60Hz |
| Rotation speed | 5-240 rpm |
| Size of rubber pads and abrasive discs | 6 inch |
| Applicable connectors | SC, FC, ST, E2000, MU, LC, MPO, SMA |
| Quantitative accuracy of grinding height | 0.005um |

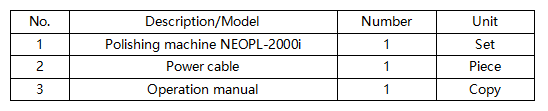

Standard Configuration：
| NO. | Description/Model | Qty | Unit |
| 1 | Grinding main unit, NEOPL-2000i | 1 | set |
| 2 | Power cord | 1 | pc |
| 3 | Operation Manual | 1 | pc |
