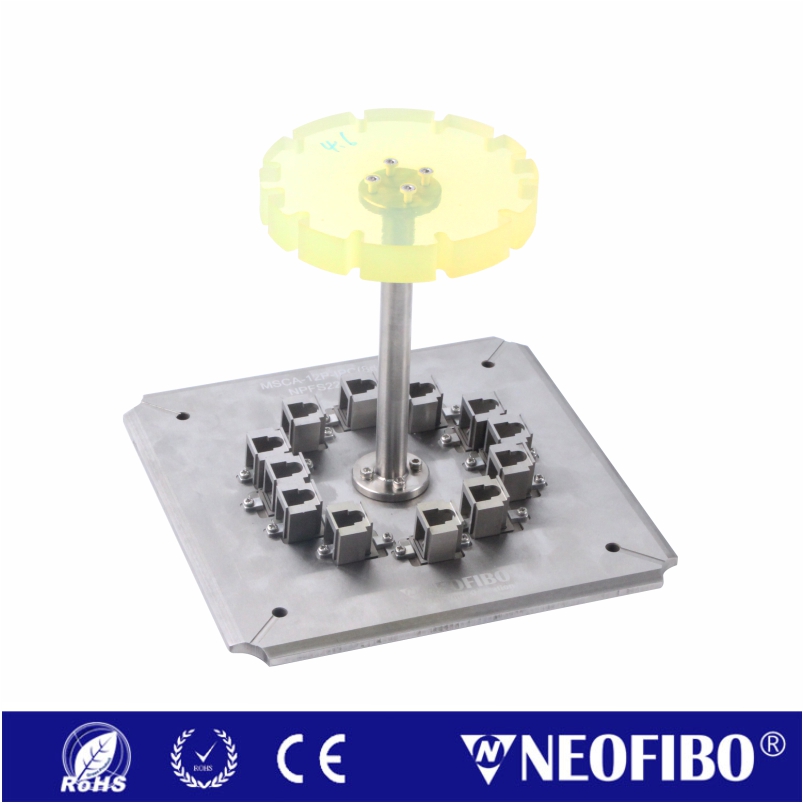

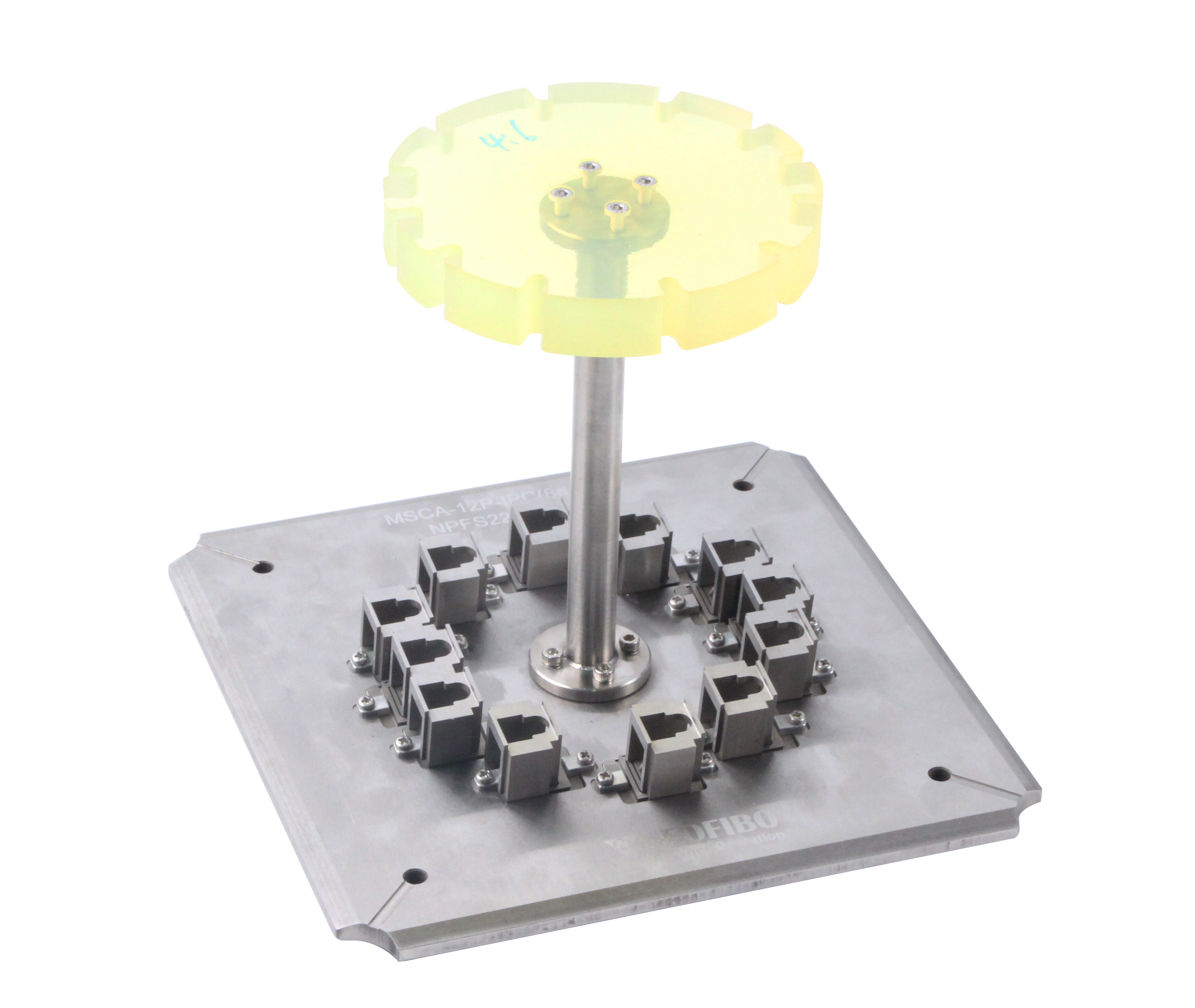

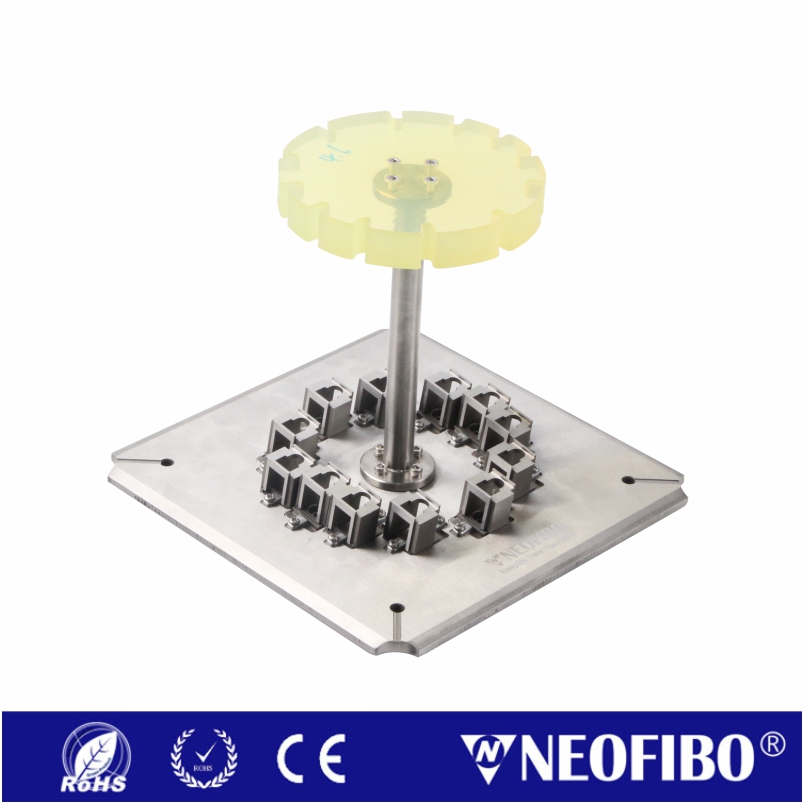

SC APC Waterproof Connector Polishing Fixture，MSCA-12P-IPC（8deg）
SC APC Waterproof Connector Polishing Fixture，MSCA-12P-IPC（8deg）
Product Description:
Shenzhen Neofibo Technology Limited for waterproof head connector fiber easy to break, cable heavy and other difficult problems, designed for the waterproof head end-face grinding special fixture, can be used for waterproof semi-finished assembly body (also called SC APC white key) grinding or waterproof head finished product rework grinding. This kind of fixture is suitable for many different brands of waterproof connectors with high versatility, such as Huawei, Corning, Commscope or ZTE waterproof connectors. According to different cable outer diameter or external dimensions, you can also choose different diversified cable fixing fixtures, unique design of precision machining of metal or plastic fixtures, can effectively ensure that the 3D yield of the end face of the core after grinding, to ensure that the key angle difference after grinding (Key Error) within ± 0.5 degrees.
Key Feature:
- Suitable for Huawei waterproof semi-finished assembly body grinding or waterproof head finished product rework grinding;
- Can design 12-core, 16-core, 20-core or 36-core grinding fixtures according to the type of waterproof head;
- Designs clamping methods such as plug-and-play locking, rotary locking after insertion into the disk body, and push-pull metal bayonet locking according to the type of waterproof head structure;
- Customized grinding fixtures for SC APC white inside keys for common, skin cable or quick connectors;
- Can ensure that the key angle difference (Key Error) after grinding is less than ±0.5 degrees;
- This type of fixture is suitable for most of the four-corner pressurized lapping machines on the market.
Specifications：
| Product Name | 12-core Waterproof Connector Polishing Fixture |
| Model | MSCA-12P-IPC (8deg) |
| Maximum number of cores | 12 core |
| Core diameter | 2.5mm |
| Applicable products | Watertight semi-finished assemblies (also called SC APC white keys) grinding or finished watertight heads |
| Clamping method | Plug-in |
| Key Error after Polishing | ＜±0.5° |
