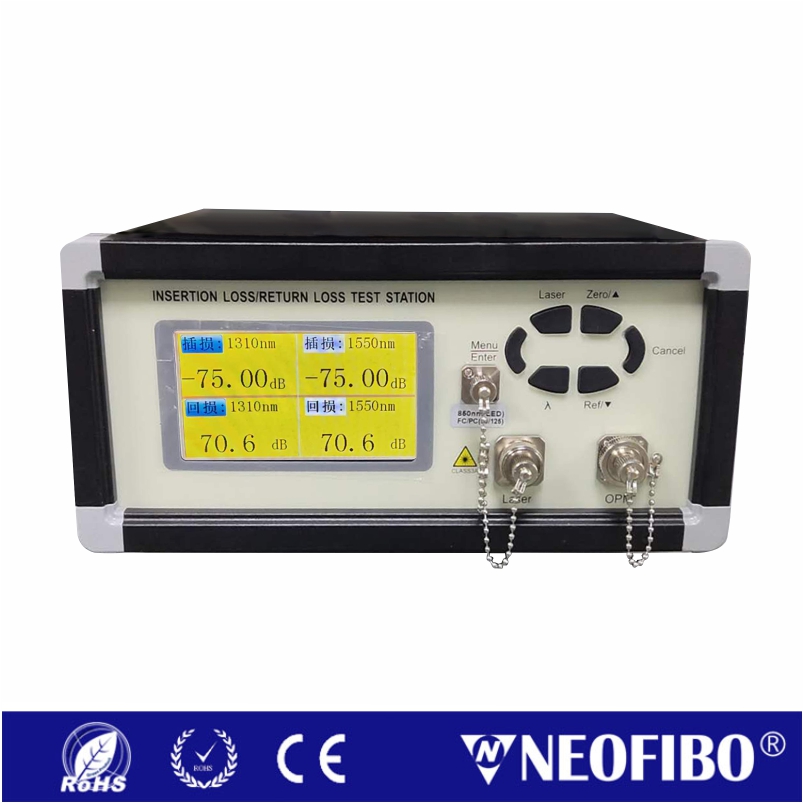

SM&MM All-in-One Tangle-Free Insertion and Return Loss Test Station，ILRL-6006M-SM（MM）

SM&MM All-in-One Tangle-Free Insertion and Return Loss Test Station，ILRL-6006M-SM（MM）

 Product Description:

ILRL-6006M-SM (MM) SM&MM All-in-One Tangle-Free Insertion and Return Loss Test Station is a precision optical testing instrument developed by Neofibo with years of experience in the production and testing of fiber optic passive components and optical communication testing instruments, and drawing on the advantages of domestic and foreign instruments and the needs of domestic customers. It is widely used in fiber optic cable, optical passive components and fiber optic communication system insertion loss and return loss test, is the majority of manufacturers, scientific research institutions and operators for production testing, research and development and engineering construction and maintenance of the basic test instrument. The use of customized integrating sphere detector on the right side makes the area of the receiving end very large, and can also extend the test of MPO-fan shaped patch cords, one channel to test the insertion and return loss values of single-mode patch cords, and the second channel to test the insertion and return loss values of multi-mode patch cords, which is easy to switch and saves space for the production workstation.

Key Features：

1、High testing precision

Through the built-in highly stable laser, the most advanced microelectronics technology and optical detection equipment, combined with software technology, makes the instrument output power stability, fast detection speed and wide testing range.

2、Multiple working modes

The test instrument integrates return loss test and insertion loss test, single-mode and multi-mode in one, easy to switch.

3、Simple and convenient operation

Return loss/insertion loss measurement is synchronized without key switching. Return loss/insertion loss test values are displayed on one instrument at the same time, the test results are clear at a glance, and the program will automatically save the corresponding test data.

4、Ergonomic design

The instrument adopts high-quality metal casing to ensure that the instrument performance is not subject to electrical interference that may exist in the production environment. The durable keys have a perfect and comfortable hand feeling.

5、Light source/optical power meter interface is designed with dexterity for easy cleaning and replacement.

The light source adopts movable interface, which can be easily removed for cleaning and secondary processing of the optical connector, and the optical power meter adopts 2.5mm/1.25mm universal interface, with the inner core and fixing ring separated, so that it is easy to replace the inner core for future wear and tear, while the inner core is made of special material, which makes the test value more accurate. (Note: When disassembling, just rotate the light source interface and unplug the interface)

Technical Parameters:

Multi-mode according to IEC-61280-4-1 standard

Standard Configuration：
